لان الكابل utp شبكة cat5e 4880 الأسلاك المصنوعة في الصين
| فئات | القط 5e |
|---|---|
| علامة تجارية | weimai الكابل |
| رقم الموديل | لان الكابل utp cat5e |
| وقت تحديث | 2024/12/22 |
Detailed Product Description

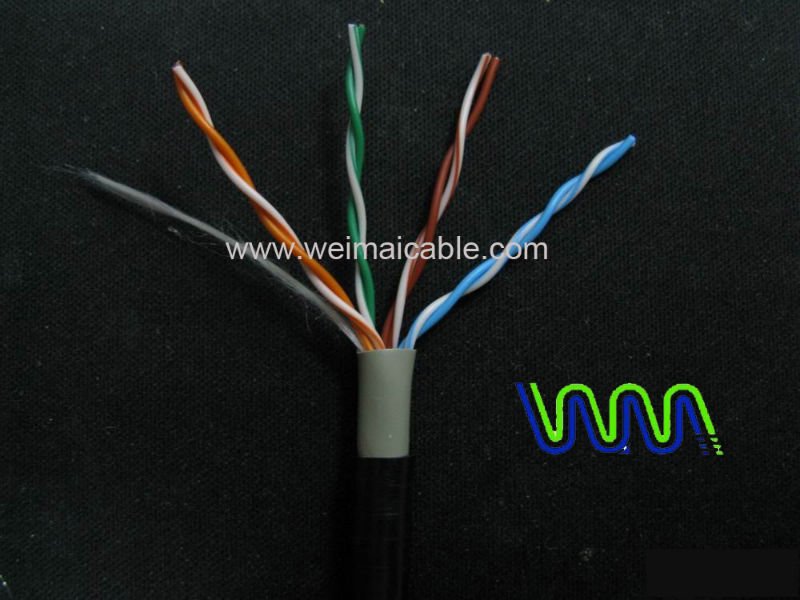

Lan Cable UTP CAT5e Network Wire
1.23AWG/24AWG(solid)
2.High Degree PE Insulation
3.CE&UL&CUL approved
4.RoHs compliant
Lan Cable UTP CAT5e Network Wire
UTP CAT5e 1) Construction | |||||||||||
Center Conductor: | 24 AWG BC/CCA | ||||||||||
Dielectric: | 0.90mm PE | ||||||||||
Jacket: | 5.20mm PVC | ||||||||||
Nom. Thick | 0.55mm | ||||||||||
2) Characteristics | |||||||||||
| |||||||||||
3) Other Electric Performance |
|
| |||||||||
Frequency (MHz)
|
Attenuation (dB/100m)
|
Return loss (dB/100m)
|
Pair to Pair | |
NEXT (dB/100m) | ELFEXT (dB/100m) | |||
0.77 1 4 8 10 16 20 25 31.25 62.5 100 155 200 300 350 | 1.80 2.00 4.00 5.80 6.50 8.20 9.20 10.40 11.70 17.00 22.00 28.10 32.40 41.00 44.90 | NA 20.00 23.00 24.50 25.00 25.00 25.00 24.30 23.60 21.50 20.10 18.80 18.00 16.80 16.30 | 70.00 68.30 59.30 54.80 53.30 50.30 48.80 47.30 45.90 41.40 38.30 35.50 33.80 32.30 30.20 | 69.00 66.80 54.70 48.70 46.80 42.90 40.70 38.80 36.90 30.80 26.80 22.90 20.70 17.20 15.90 |
