لان كابل cat6 wm1738w
فئات | Ungrouped |
---|---|
علامة تجارية | weimai الكابل |
رقم الموديل | لان الكابل |
النوع | كات 6 |
لان الكابل، موصل | olid العارية أو النحاس أو cca ccs لان الكابل |
لان الكابل، القطر | 0.5mm، awg 24 لان الكابل |
لان الكابل، العزل | pe، hdpe كابل lan |
لان الكابل، أزواج | 4 أزواج كابل lan |
لان الكابل، الدرع | al-- احباط لان الكابل |
لان الكابل، ripcord | تحت سترة. لان الكابل |
لان الكابل، سترة | pvc أو الهالوجين-- مجانا( lsoh) لان الكابل |
لان الكابل، تفاصيل التغليف | متر 305/ لفة/ الكرتون الخارجي أو متر 305/ لفة/ طبل خشبي لان الكابل |
لان الكابل، تفاصيل التسليم | في غضون أيام 15 لان الكابل |
لان الكابل | عينات مجانية لان الكابل |
وقت تحديث | 2024/12/14 |

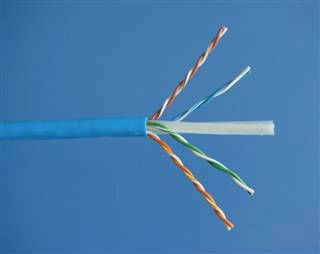

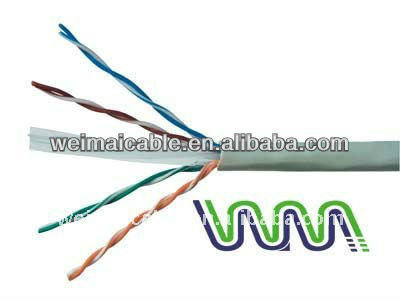

1. Lan Cables
2. Lan Cable Specifications
Conductors | 0.40mm-0.57mm ( 23AWG-26AWG)
BC (Bare Copper); CCA ( Copper Clad Aluminum ); CCS ( Copper Clad Steel ) |
Insulation | Polythene (PE). |
Pairs | 4 |
Shield | Al-foil Al-foil |
Ripcord | Under Jacket |
Jacket | PVC or Halogen-Free(LSOH) |
3. ELECTRICAL CHARACTERISTICS
Frequency(MHz) | Impedance(ohm) | RL(dB) | Attenuation(dB/100m) | Next(dB) | Next Power Sum(dB) | ELFEXT(dB) | PSELFEXT(dB) |
1.0 | 100±15 | 20.0 | 2.0 | 62.3~65.3 | 62.3~62.3 | 61.0~63.8 | 61.0~60.8 |
4.0 | 100±15 | 23.0 | 4.1 | 53.0~56.3 | 53.0~53.3 | 49.0~51.8 | 49.0~48.8 |
10.0 | 100±15 | 25.0 | 6.5 | 47.0~50.3 | 47.0~47.3 | 41.0~43.8 | 41.0~40.8 |
16.0 | 100±15 | 25.0 | 8.2 | 44.0~47.2 | 44.0~44.2 | 37.0~39.7 | 37.0~36.7 |
20.0 | 100±15 | 25.0 | 9.2 | 43.0~45.8 | 43.0~42.8 | 35.0~37.8 | 35.0~34.8 |
31.25 | 100±15 | 23.6 | 11.7 | 40.0~42.9 | 40.0~39.9 | 31.0~33.9 | 31.0~30.8 |
62.50 | 100±15 | 21.5 | 17.0 | 35.0~38.4 | 35.0~35.4 | 25.1~27.8 | 25.1~24.9 |
100.0 | 100±15 | 20.1 | 22.0 | 32.0~35.3 | 32.0~32.3 | 21.0~23.8 | 21.0~20.8 |
4.Lan cable Standards
UL444 /CSA-C22.2 No.214, Type: CM.
EIA /TIA-568A and EIA/TIA 568B Horizontal Cable.
LAN CABLE FTP Single Shielding Cable,Mylar tape. Aluminum-mylar tape ang Drain wire.
LAN CABLE SFTP Single Shielding Cable,Mylar tape. Aluminum-mylar tape ang Drain wire and drain wire and bare or tinned Copper braid.
5. Applications
WEIMAI FTP CAT5e LAN CABLE are high performance cables used increasingly for modern computer network systems. Our lan cable used for the wiring between telecom lead-outs and floor distributor comprehensive system, as well as the wiring beteen the user telecom lead-outs and floor distributor comprehensive system, it meets the requirements of 100MHz data ommunication. LAN CABLE standard wiring length 90m.
10 Base T(IEEE 802.3) Fast Ethernet(IEEE 802.3u) 100vg-AnyLAN(IEEE 802.12) Token Ring (IEEE 802.5) TP-PMD (ANSI X3T9.5) 100 Mbps CDDI ATM 155
6.Optional versions:
available in 24AWG or 26AWG

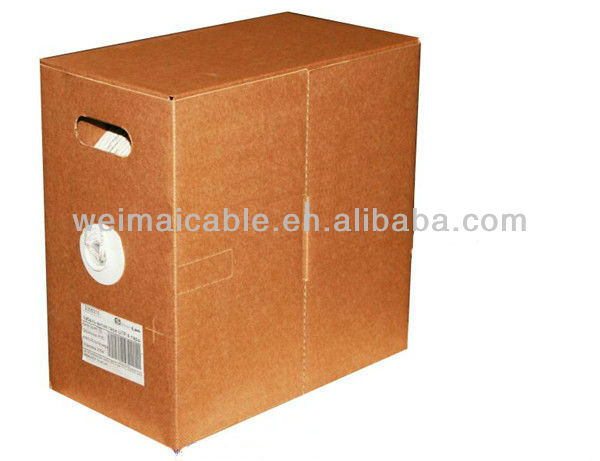

7.packaging
1 | 305M/Roll ; Packed in Pull box; 2 Pull Boxes / Carton Box; |
2 | Note: Wooden Reel; Plastic Reel; Paper Reel Available |
3 | Note: 100M/Roll ; 500Feet/Roll; Or other length Available |
4. Lan Cable OEM Service
Service 1 | Cable Color | Gray;White;Black;Blue and other color available |
Service 2 | Cable Words | Your brand on cable available |
Service 3 | Label | Label with your logo |
Service 4 | Pull Box | Your brand ( company name and logo...) |
Service 5 | Carton Box | Your brand ( company name and logo...) |
Service 6 | Cable Specs | Made according to your specs. |
